Monday, May 12, 2008

Time to put the cross-members back in.

I wanted the frame to be flat and square before I bolted it back together. First I put a level on the back. It showed about 1/4 inch low on the right.
To adjust I stacked washers under the rigt rear jack stand.
The level on the front showed that it was about 1/4 in low on the left. This meant the frame had 1/4 inch of twist in it. I do not know if the cross-members will hold it flat, but it gives me a good starting point.
Once again, I stacked washers under the appropriate stand. Before bolting in the members, I put a tape accross the diagonals in three different places. All showed that the frame was square. Now that I know that the frame is square and flat, it is time to bolt it all up.
Here it is from front to back with the members on place and torqued down to 60 ft/lbs on the 7/16 bolts and 80 ft/lbs on the half inch bolts.

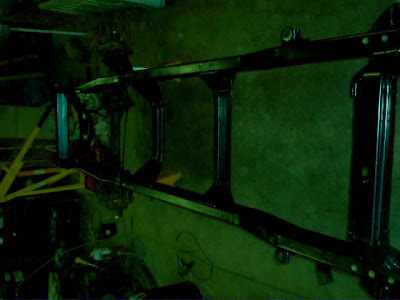

The last pic from back to front. I don't know why it is green. I think it will signal the end of the cheap camera. I will likely need to move the two middle cross members forward some because the NV4500 5-speed is shorter than the auto that was on the 440.

The next move will be to roll it out of the shop and start in on the Ramcharger.

Saturday, May 10, 2008

Finally got some paint on the frame.

Sorry for the poor picture. Using an old cam as a shop cam. Anyway, here is the painted frame. I coated it with POR15. This is two coats of the original product. Tomorrow, I will recoat it with POR15 Chasis Black. Unfortunately, it looks like my hands and arms will be blackish for a while. POR15 does not wash off skin. Next time I will wear long sleeves and keep my gloves on.
A better picture. I did not paint the axles. They are not staying on the truck.
The next step after topcoat is to pop some wheels on it and roll it out of the shop to make room for the Ramcharger. I want to do a quick cummins install and get it on the road. Then I can get it out and have room and time for the crewcab again. So, It looks like I will be signing off this blog for a while and focussing on the Ramcharger blog. Check the link.

Cab Mounts

I have 3 different Dodge trucks without bodies on them and all of them have cracked or broken rear cab mounts. I figure if I just weld them up they will just crack again, so I looked at a different remedy.

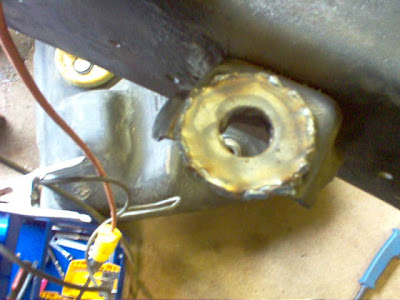

I searched through my washer box abd came up with two large thick washes to weld in place to reinforce the entire mount surface.
Clamped up ready to weld.
Yeah, I welded it right above the fuel tank. Maybe I am not too bright
